AXES ON GANTRY
Specification Download-
The high rigidity cross beam (X axis) is precision machined.
-
Innovative modular structure on Y / Z axes (Patented).
-
Double column support allows for flexible layout.
-
Expansion for multi-process is available.

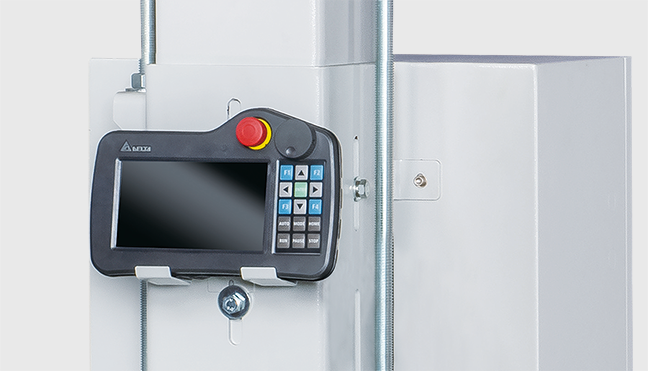

CONTROL SYSTEM
Specification Download

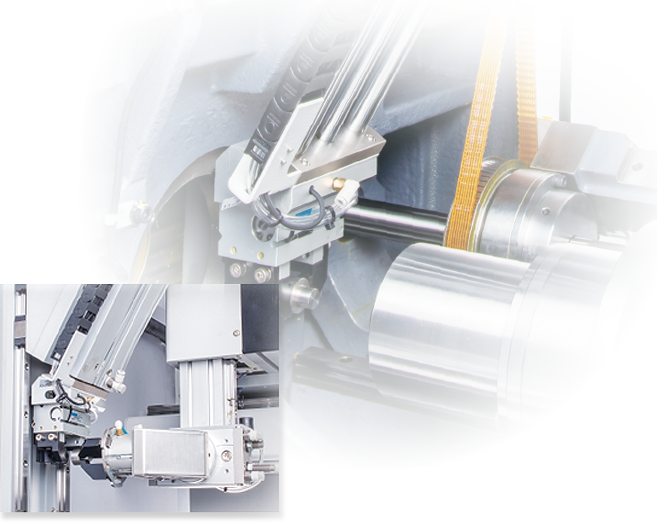

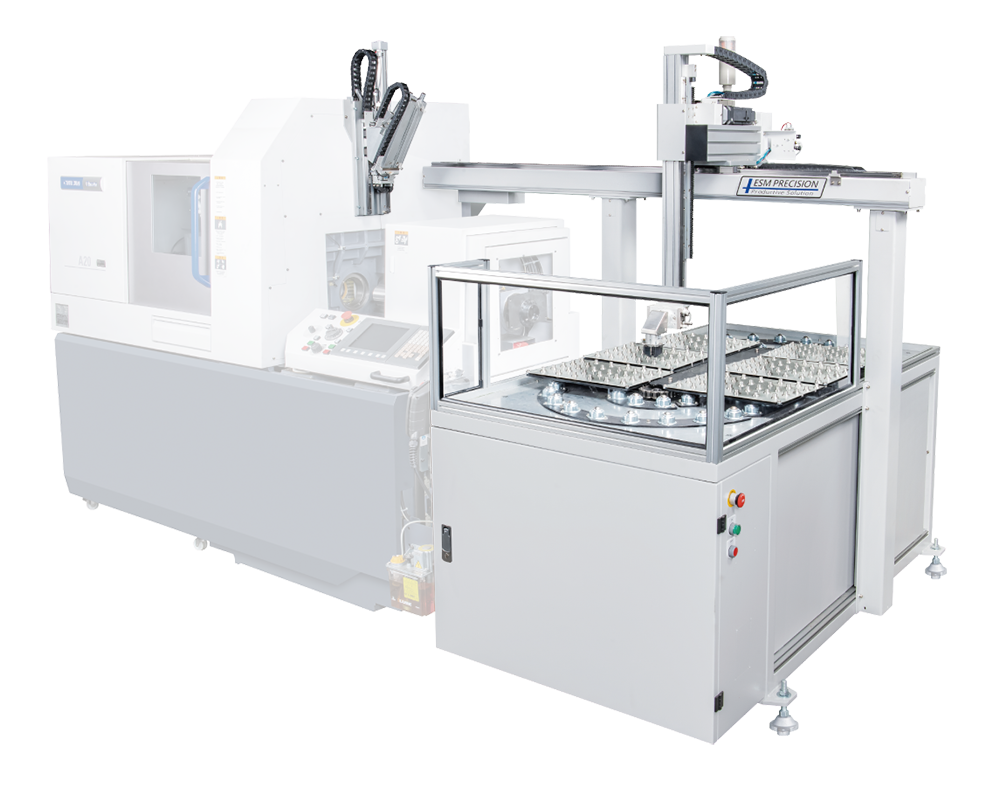

LIGHT DUYU GANTRY LOADER
Specification Download
Angular Feed Parts Supply Device
-
Suitable for supplying parts to the spindle on a sliding headstock lathe,which operates under a tool monernent machining mode. - The shortest route design effectively shortens the parts supply internal and reduces installation space. - Available to use together with various types of parts supply units. - Applicable for a wide range of parts and factory layouts.
-
Suitable for supplying parts to the spindle on a sliding headstock lathe,which operates under a tool monernent machining mode.
-
The shortest route design effectively shortens the parts supply internal and reduces installation space.
-
Available to use together with various types of parts supply units.
- Applicable for a wide range of parts and factory layouts.
PARTS SUPPLY UNIT

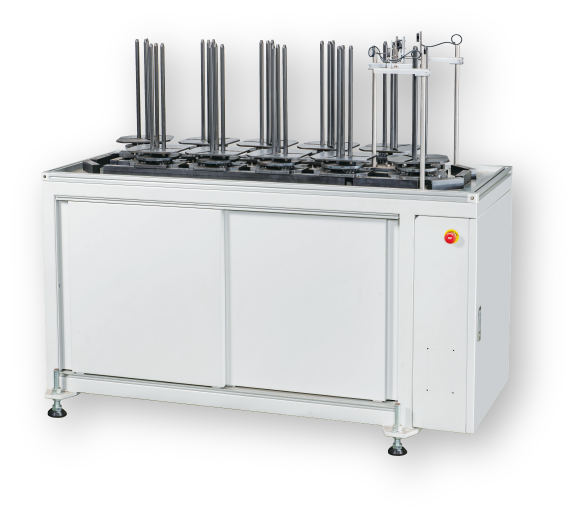

SR Rotary Stack Parts Supply Unit
-
Suitable for regular disk shaped parts.
-
Various parts supply deployment.
-
Under a safety condition, supplying parts without stop of the machine is possible.

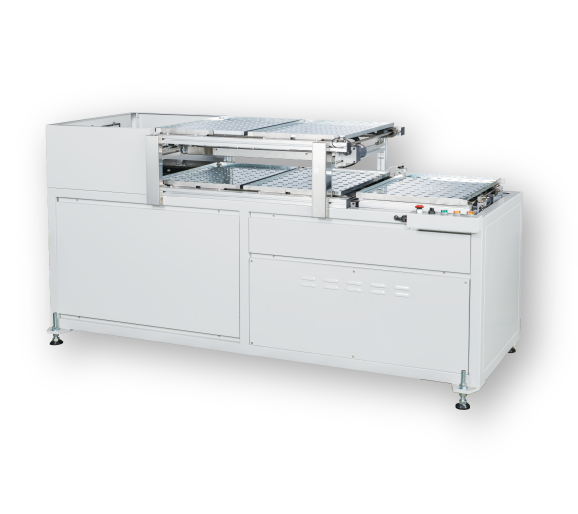

SD Double Layer Circulated Array Tray Type Parts Supply Unit
-
Widely applied for positioning of regular and irregular parts.
-
Solid structure design helps to increase parts storage capacity.
-
Suitable for single time of part supply and where high storage capacity is required.
-
Can be extended with multi-process automated flow production line.

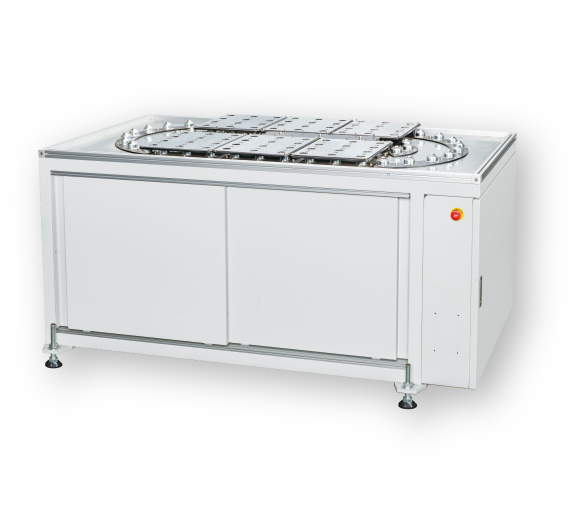

SF Rotary Array Type Parts Supply Unit
-
Widely applied for positioning of regular and irregular parts.
-
Under a safety condition, supplying parts without stop of the machine is possible.

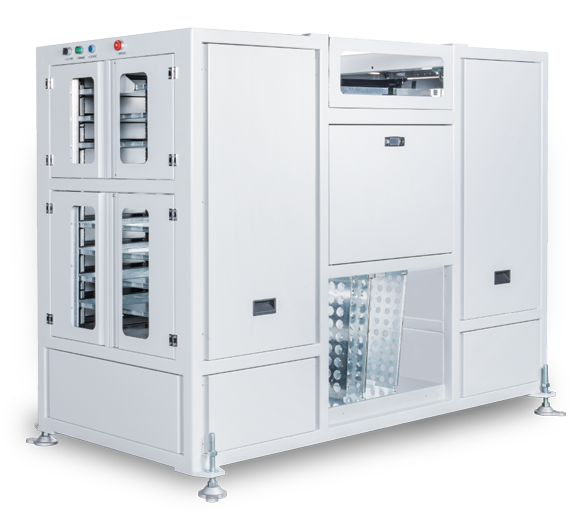

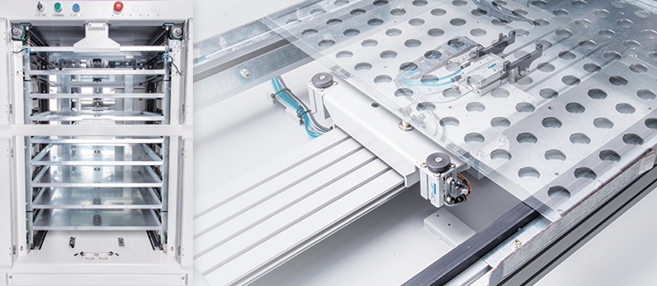

ST double turret circulated array type parts supply unit
-
Designed with independently circulated raw material preparation area and finished product collection area.
-
Available to expand to an automatic circulated production line.
-
Employ servo motor to drive the circulated rack.
-
Specially used parts tray management storage area.
PICK AND PLACE UNIT

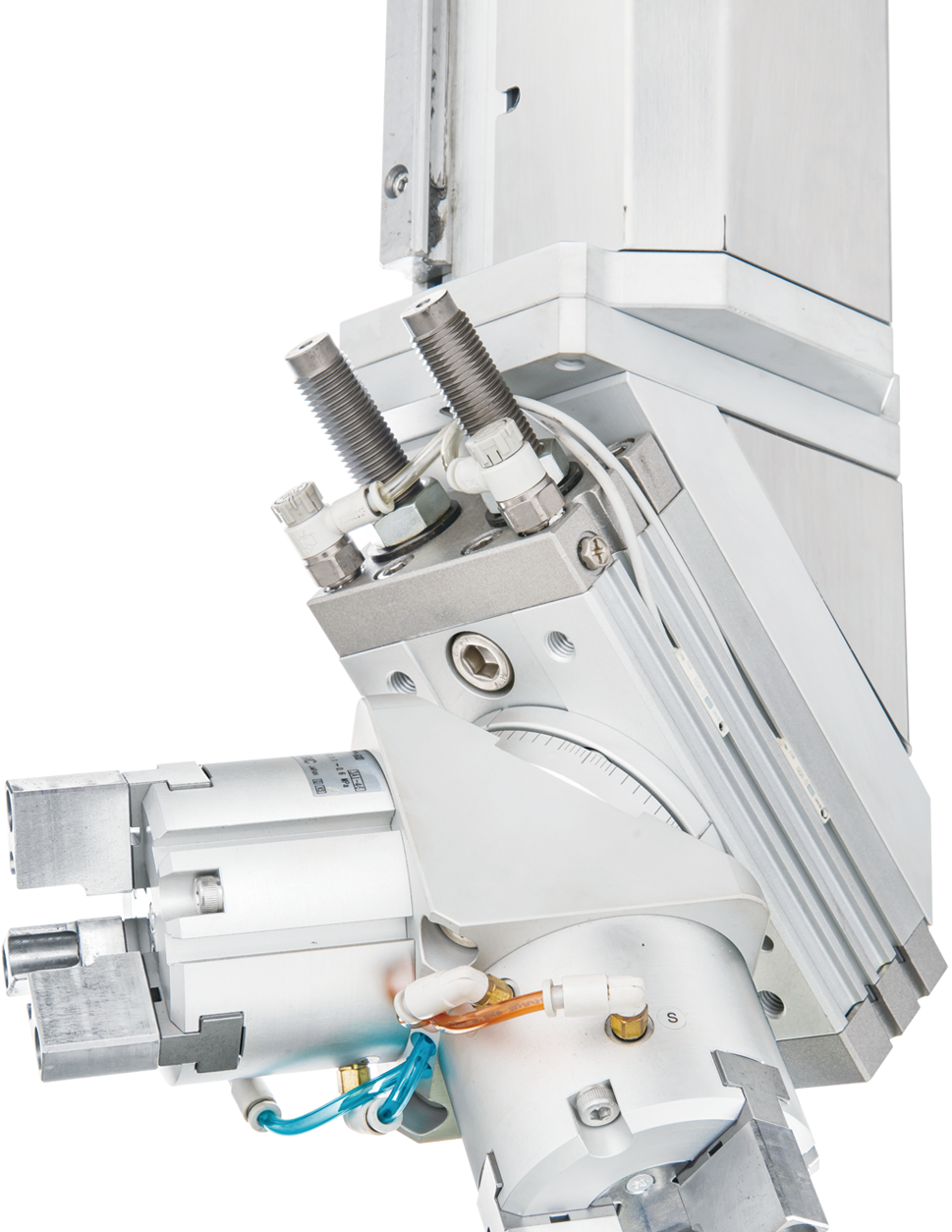

Pick and Place Swiveling Module (C axis)
- Driven by low backlash transmission mechanism

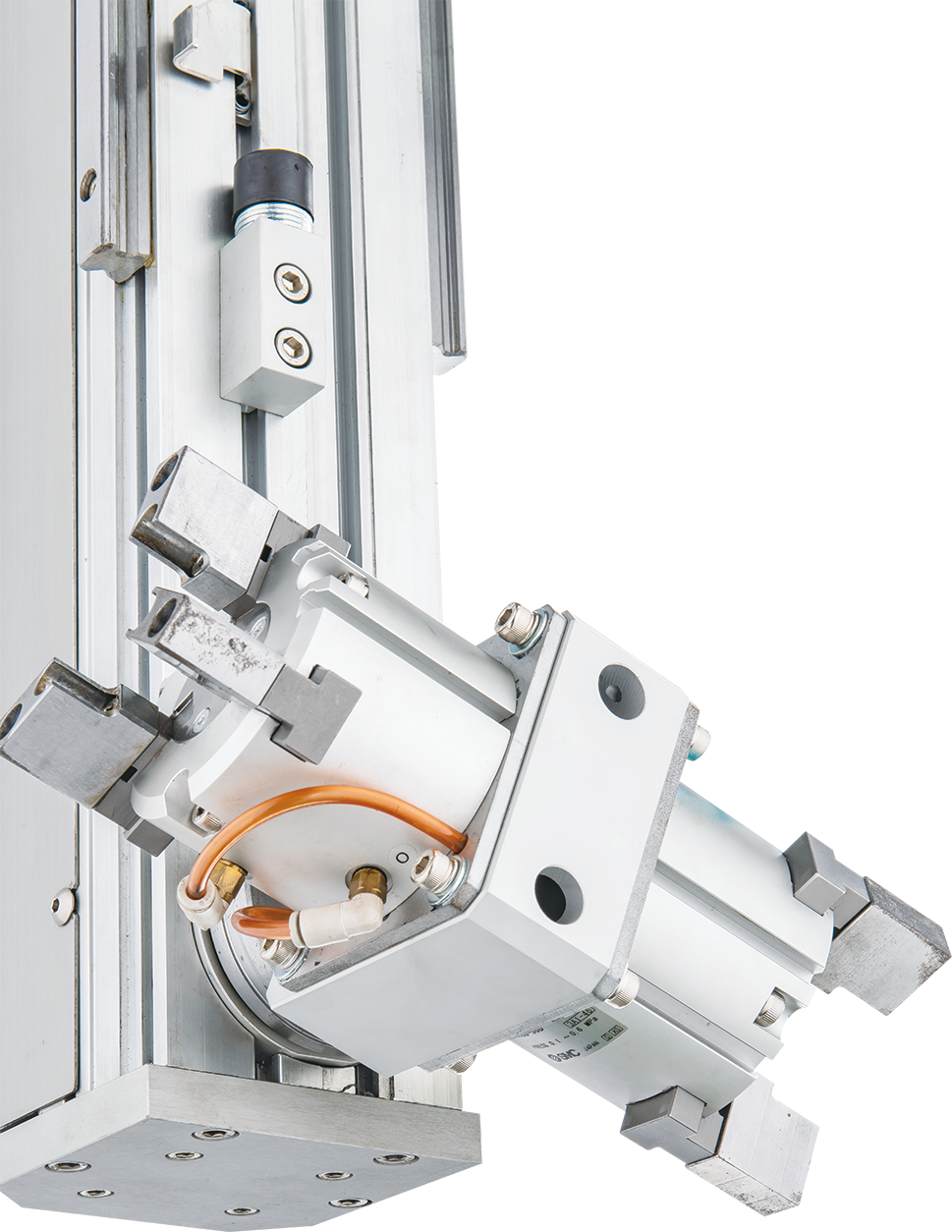

Pick and Place Swiveling Module (Standard)
- Pneumatic drive

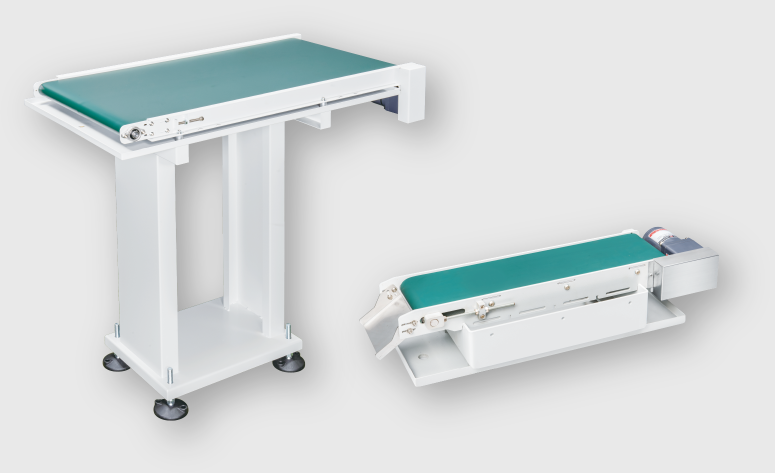

Parts Supply And Collection Conveyor
